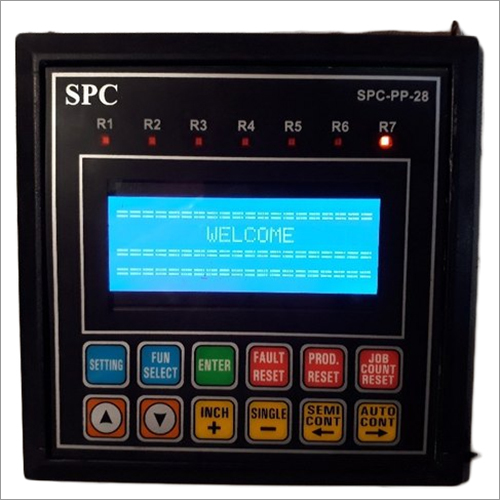

Electrical Control Panel

Get a Price/Quote

MOQ : 1 Pieces

Electrical Control Panel Specification

Components
Switches indicators meters

Operating Voltage
220V - 415V

Connectivity Type
Wired

Rated Operation Voltage
220V - 415V

Rated Current
Not visible

Protection Class
Class I

Way
3 Way

Protection Level
High

Panel Type
Control Panel

Thickness
1.2 mm - 2 mm

Cover Material
Painted Steel

Rated Insulation Voltage
Not visible

Features
Compact design easy operation

Current Rating
Not visible

Base Material
Steel

Control System
Manual and automatic controls

Cooling System
None visible

Cabinet Material
Mild Steel

Product Type
Electrical Control Panel

Material
Mild Steel

Surface Finish
Painted

Standard
ISO/IEC standard (assumed)

Surface Color
Gray

Rated Voltage
220V - 415V

Frequency (MHz)
50 MHz

Maximum Output Current
Not visible

Dimension (L*W*H)
Standard

Warranty
1 Year

Application
Industrial automation

Display Type
Digital and LED indicators

About Electrical Control Panel

We offer superior quality electrical control panels that are highly Durable, Cost effective and are maintenance free. To ensure that we can provide world class products of flawless quality to our clients, we maintain a stringent quality policy as per which each product is thoroughly tested at every stage of the manufacturing process. From raw material procurement to final inspection of products, everything is done with utmost care at our in-house testing lab.

Advanced Control and Operation

Utilizing both manual and automatic controls, this panel allows seamless management of industrial systems. Whether overseeing processes manually or automating operations, users gain flexibility and control efficiency, making it adaptable to evolving industrial demands.

Robust Construction for Industrial Use

Fabricated from mild steel with a painted exterior, the panel is highly durable, corrosion-resistant, and designed to withstand harsh industrial environments. Its IP55 rating provides effective protection against dust and water, ensuring long-lasting performance and safety.

User-Friendly Interface

Equipped with digital and LED indicators, the panel facilitates clear system status monitoring. The compact layout, standardized dimensions, and easy access controls simplify operation and maintenance, enhancing user experience while ensuring operational safety.

FAQs of Electrical Control Panel:

Q: How does the control panel accommodate both manual and automatic system operation?

A: The panel features dedicated switches and integrated control circuits that allow users to toggle between manual and automated modes. This dual control capability ensures operational flexibility for different industrial scenarios.

Q: What are the main benefits of the IP55 protection rating for this panel?

A: The IP55 rating means the enclosure is protected against dust ingression and low-pressure water jets, making it highly reliable for industrial settings where environmental conditions can be challenging.

Q: When would you typically use this 3-way electrical control panel in industrial automation?

A: This control panel is suited for applications requiring centralized or distributed control of equipment in sectors like manufacturing, processing, or infrastructure automation, particularly where multiple circuits need coordination.

Q: Where can the panel be installed within an industrial facility?

A: The compact and rugged design allows installation in control rooms, factory floors, or machinery zones, ensuring accessibility and safety wherever centralized electrical control is necessary.

Q: What process is involved in connecting equipment to this wired control panel?

A: Industrial-grade wiring is used to connect machinery or process equipment to the panel, adhering to standard wiring practices. Proper termination and labeling ensure ease of maintenance and safe operation.

Q: What advantages does the steel construction provide for the panel?

A: Mild steel construction enhances mechanical strength, impact resistance, and durability, while the painted finish protects against corrosion. This results in a longer lifespan and reduced maintenance needs.
